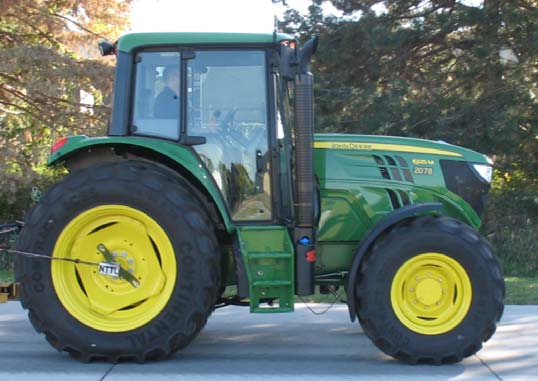

John Deere 6125M Specs ( 2013-2015 )
Production
| Description | Utility tractor / Built in Mannheim, Baden-Württemberg, Germany |
|---|---|
| Manufacturer | John Deere |
| Original price | $74,324 (2014 SyncroPlus ROPS 2WD ) |
Engine
| Engine type | John Deere 4.5L 4-cyl diesel |
|---|---|
| Bore/Stroke | 4.19x5.00 inches (106 x 127 mm) |
| Compression | 16.1:1 |
| Coolant capacity | 23.3 qts (22.1 L) |
| Description | John Deere PowerTech PVX / variable geometry turbocharger with intercooler diesel / 4-cylinder / liquid-cooled |
| Displacement | 276 ci (4.5 L) |
| Emission control | cooled exhaust gas recirculation |
| Emissions | Interim Tier IV |
| Fuel system | high pressure common rail |
| Maximum Power (gross) | 130 hp (96.9 kW) |
| Oil capacity | 16.9 qts (16.0 L) |
| Rated Power (gross) | 125 hp (93.2 kW) |
| Rated RPM | 2100 |
| Starter | electric |
| Starter volts | 12 |
| Torque | 415 lb-ft (562.7 Nm) |
| Torque RPM | 1600 |
| Drawbar (tested) | 98.31 hp (73.3 kW) |
| Engine (gross) | 125 hp (93.2 kW) |
| Engine (max) | 130 hp (96.9 kW) |
| PTO (claimed) | 102 hp (76.1 kW) |
| PTO (tested) | 114.88 hp (85.7 kW) |
Transmission
| Clutch | wet disc / wet disc / wet disc / wet disc |
|---|---|
| Gears | 12 forward and 4 reverse / 16 forward and reverse / 24 forward and reverse / 24 forward and reverse |
| Oil capacity | 55 qts (52.1 L) / 55 qts (52.1 L) / 55 qts (52.1 L) |
| Transmission | SyncroPlus / PowrQuad / PowrQuad Plus / AutoQuad Plus |
| Type | fully synchronized / partial power shift / partial power shift / partial power shift |
| Transmission type | 12-speed fully synchronized / 16-speed partial power shift / 24-speed partial power shift |
| Transmission type | 12-speed fully synchronized / 16-speed partial power shift / 24-speed partial power shift |
Mechanical
| Cab | Two-post foldable ROPS. Cab optional with air-conditioning. GreenStar (optional); AutoTrac (optional) |
|---|---|
| Description | Hydraulic wet disc brakes |
| Differential lock | Electro-hydraulic rear |
| Drive type | Two- or four-wheel drive |
| Steering | hydrostatic power |
Capacity
| Fuel | 58 gal (219.5 L) |
|---|---|
| Hydraulic system | 13.7 gal (51.9 L) |
Hydraulics
| Capacity | 13.7 gal (51.9 L) |
|---|---|
| Mid valves | 2 or 3 (optional) |
| Pressure | 2900 psi (200.0 bar) |
| Pump flow | 21.1 gpm (79.9 lpm) |
| Rear valves | 1 to 3 |
| SCV flow | 21.1 gpm (79.9 lpm) |
| Type | open center pressure compensated |
Hitch
| Control | electrohydraulic load sensing |
|---|---|
| Drawbar | Cat. II |
| Rear lift (at 24"/610mm) | 5154 lbs (2337 kg) |
| Rear Type | II/IIIN |
PTO
| Engine RPM | 540@1932 |
|---|---|
| Rear PTO | independent |
| Rear PTO Type | 540/1000 (1.375) |
Electrical
| Battery volts | 12 |
|---|---|
| Charging amps | 90 |
| Charging system | alternator |
| Charging volts | 14 |
| Ground | negative |
Dimensions & Tires
| Bar rear axle | 3.1 by 100.6 inches (78 by 2555 mm) |
|---|---|
| Clearance (front axle) | 20.47 inches (4WD) (51 cm) |
| Description | Flange rear axle |
| Front tread | 60.4 to 80.4 inches (2WD) (153 to 204 cm) |
| Max weight | 19180 lbs (8700 kg) |
| Weight | 11519 lbs (5225 kg) |
| Wheelbase | 101.6 inches (258 cm) |
| Front tire | 10.00-16 |
| Rear tire | 460/85R34 (2WD) |
| Weight | 11519 lbs (5225 kg) |
| Wheelbase | 101.6 inches (258 cm) |
| Standard tires (ag) | Front: 10.00-16. Rear: 460/85R34 (2WD) |
6125M Serial Number Location
| Description | Serial number plate on the right side of the tractor frame, above the front axle. |
|---|
John Deere 6125M attachments
| Description | front-end loader |
|---|
OCED Tractor Test 2078
| Description | Diesel 24-speed PowrQuad Plus 4WDOctober 22 - 30, 2013Link: OCED Tractor Test 2078 file / PTO performance / Drawbar performance |
|---|---|
| Fuel use | 6.7 gal/hour (25.4 l/hour) / 6.7 gal/hour (25.4 l/hour) / 6.9 gal/hour (26.1 l/hour) / 6.7 gal/hour (25.4 l/hour) |
| Max power | 114.88 hp (85.7 kW) / 98.31 hp (73.3 kW) |
| Max pull | 10828 lbs (4911 kg) |
| Power at rated engine speed | 105.13 hp (78.4 kW) |
| Power at rated PTO speed | 114.39 hp (85.3 kW) |
References
| Description | 6M Series Tractors published in 2013, by John Deere / Specialty Tractors published in 2014, by John Deere |
|---|
