John Deere 6150R Specs ( 2013-2014 )
Production
| Description | Utility tractor / Built in Mannheim, Baden-Württemberg, Germany |
|---|---|
| Manufacturer | John Deere |
| Original price | $125,570 (2014 16-speed Basic Cab 2WD ) |
Engine
| Engine type | John Deere 6.8L 6-cyl diesel |
|---|---|
| Fuel tank | 92.5 gal (350.1 L) |
| Air cleaner | dual stage dry |
| Bore/Stroke | 4.15x5.00 inches (105 x 127 mm) |
| Compression | 16.5:1 |
| Coolant capacity | 28.5 qts (27.0 L) |
| Description | John Deere / turbocharged intercooled diesel / 6-cylinder / liquid-cooled |
| Displacement | 415 ci (6.8 L) |
| Emission control | exhaust gas recirculation (EGR) |
| Emissions | Stage IIIb |
| Firing order | 1-5-3-6-2-4 |
| Idle RPM | 850-2250 |
| Maximum Power (gross) | 165 hp (123.0 kW) |
| Operating RPM | 1500-2100 |
| Rated Power (gross) | 150 hp (111.9 kW) |
| Rated RPM | 2100 |
| Starter | electric |
| Starter volts | 12 |
| Torque | 517.8 lb-ft (702.1 Nm) |
| Torque RPM | 1600 |
| Drawbar (tested) | 116.90 hp (87.2 kW) |
| Engine (gross) | 150 hp (111.9 kW) |
| Engine (max) | 165 hp (123.0 kW) |
| PTO (claimed) | 120 hp (89.5 kW) |
| PTO (tested) | 144.68 hp (107.9 kW) |
Transmission
| Clutch | hydraulic wet discs |
|---|---|
| Description | Four gears (1-4) in four ranges (A-D) with power shuttle. |
| Gears | 20 forward and reverse / 20 forward and reverse / infinite forward and reverse / infinite forward and reverse |
| Transmission | PowrQuad Plus / AutoQuad Plus / AutoPowr IVT / DirectDrive |
| Type | partial power shift / partial power shift / infinitely variable transmission |
| Description | infinitely variable transmission |
| Transmission type | 20-speed partial power shift |
| Description | infinitely variable transmission |
| Transmission type | 20-speed partial power shift |
Mechanical
| Brakes | hydraulic wet disc |
|---|---|
| Cab | Cab standard with air-conditioning. |
| Description | ComfortView cab standard with air-conditioning. Optional hydraulic cab suspension (HCS Plus). AutoTrac ready. ISOBUS implement connections. |
| Differential lock | Electro-hydraulic rear with wet disc clutch. Self-locking front. |
| Drive type | Four-wheel drive |
| Final drives | inboard planetary |
| Steering | hydrostatic power |
| Trailer brakes | hydraulic or pneumatic optional |
Hydraulics
| Front valves | 2 (optional) |
|---|---|
| Pressure | 2900 psi (200.0 bar) |
| Pump flow | 21.1 gpm (79.9 lpm) |
| Rear valves | 4 |
| SCV flow | 26.4 gpm (99.9 lpm) |
| Type | pressure flow compensated (PFC) |
| Valves | 3 to 4 |
Hitch
| Control | load and depth control with electronic lower link sensing |
|---|---|
| Drawbar | Cat. 2 |
| Front Hitch | 3N |
| Front lift (at ends) | 7,277 lbs (3300 kg) |
| Rear lift | 9193 lbs (4169 kg) |
| Rear lift (at 24"/610mm) | 9,261 lbs (4200 kg) |
| Rear lift (at ends) | 10,584 lbs (4800 kg) |
| Rear Type | 3 |
PTO
| Clutch | electro-hydraulic wet disc |
|---|---|
| Engine RPM | 1000@1995 |
| Front PTO | independent |
| Front PTO Type | 1000 |
| Rear PTO | independent |
| Rear PTO Type | 540/540E/1000 |
Electrical
| Battery CCA | 1200 |
|---|---|
| Battery Group | 4D |
| Battery volts | 12 |
| Charging amps | 120 |
| Charging system | alternator |
| Charging volts | 14 |
| Ground | negative |
Dimensions & Tires
| 2WD Wheelbase | 117.5 inches (298 cm) |
|---|---|
| 4WD Wheelbase | 108.9 inches (276 cm) |
| Bar rear axle | 3.62 by 100.4 inches (91 by 2550 mm) / 3.62 by 110.5 inches (91 by 2806 mm) |
| Description | Flange rear axle |
| Front axle | Triple Link Suspension |
| Front tread | 60 to 88 inches (152 to 223 cm) |
| Ground clearance | 20.9 inches (53 cm) |
| Height | 116.1 inches (294 cm) |
| Length | 194.1 inches (493 cm) |
| Max weight | 24,917 lbs (11302 kg) |
| Operating weight | 14975 lbs (6792 kg) |
| Shipping weight | 13,660 lbs (6196 kg) |
| Wheelbase | 108.9 inches (276 cm) |
| Width | 100.4 inches (255 cm) |
| 2WD Wheelbase | 117.5 inches (298 cm) |
| 4WD Wheelbase | 108.9 inches (276 cm) |
| Front tire | 11.00-20 |
| Rear tire | 480/80R46 (2WD) |
| Weight | 13,660 lbs (6196 kg) |
| Wheelbase | 108.9 inches (276 cm) |
| Standard tires (ag) | Front: 11.00-20. Rear: 480/80R46 (2WD) |
6150R Serial Number Location
| Description | Serial number plate on the right side of the tractor frame, above the front axle. |
|---|
John Deere 6150R attachments
| Description | front-end loader |
|---|

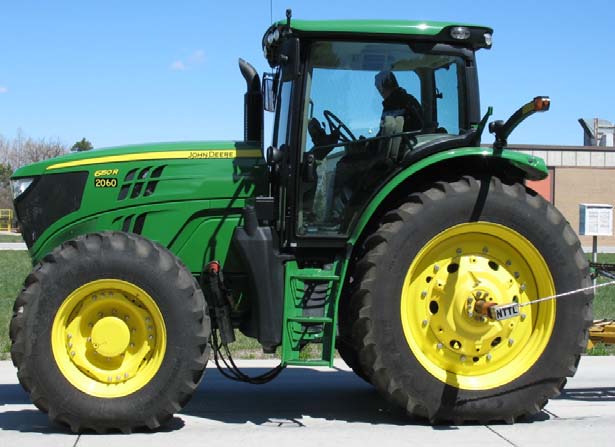

OCED Tractor Test 2060
| Description | Diesel AutoQuad 20-speed 4WDApril 10 - 24, 2013Link: OCED Tractor Test 2060 file / PTO performance / Drawbar performance |
|---|---|
| Fuel use | 8.2 gal/hour (31.0 l/hour) / 7.9 gal/hour (29.9 l/hour) / 7.7 gal/hour (29.1 l/hour) / 7.9 gal/hour (29.9 l/hour) |
| Max power | 144.68 hp (107.9 kW) / 116.90 hp (87.2 kW) |
| Max pull | 13894 lbs (6302 kg) |
| Power at rated engine speed | 124.32 hp (92.7 kW) |
| Power at rated PTO speed | 135.50 hp (101.0 kW) |
References
| Description | 6R Series Tractors published in 2012, by John Deere / Operator's Manual Tractors 6140R, 6150R, 6150RH, 6170R, 6190R and 6120R (OMAL211531) published in 2014 |
|---|
Variants
| 6150R | row-crop |
|---|---|
| 6150RH | high-crop |
