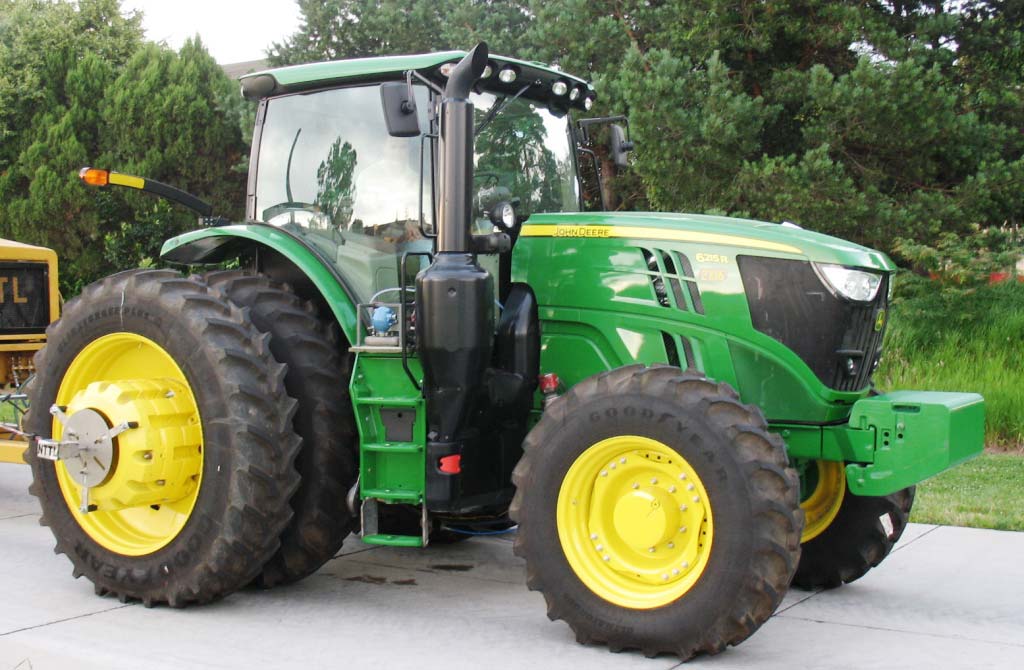

John Deere 6215R Specs ( 2014-Present )
Production
| Description | Row-Crop tractor / Built in Mannheim, Baden-Württemberg, Germany |
|---|---|
| Manufacturer | John Deere |
Engine
| Engine type | John Deere 6.8L 6-cyl |
|---|---|
| Exhaust fluid (DEF) | 5.3 gal (20.1 L) |
| Fuel tank | 104.4 gal (395.2 L) |
| Bore/Stroke | 4.15x5.00 inches (105 x 127 mm) |
| Coolant capacity | 29.6 qts (28.0 L) |
| Cooling system | viscous-drive fan |
| Description | John Deere PowerTech PVS / turbocharged / 6-cylinder / liquid-cooled |
| Displacement | 415 ci (6.8 L) |
| Emission control | diesel particulate filter, diesel oxidation catalyst, and selective catalytic reduction |
| Emissions | Stage IV |
| Fuel system | electronic high-pressure common rail |
| Idle RPM | 850-2250 |
| Maximum Power (gross) | 255 hp (190.2 kW) |
| Maximum Power (net) | 244 hp (182.0 kW) |
| Operating RPM | 1600-2100 |
| Rated Power (gross) | 215 hp (160.3 kW) |
| Rated Power (net) | 214 hp (159.6 kW) |
| Rated RPM | 2100 |
| Starter | electric |
| Starter volts | 12 |
| Torque | 741 lb-ft (1004.8 Nm) |
| Torque RPM | 1600 |
| Drawbar (tested) | 173.89 hp (129.7 kW) |
| Engine (gross) | 215 hp (160.3 kW) |
| Engine (max) | 255 hp (190.2 kW) |
| Engine (net) | 214 hp (159.6 kW) |
| PTO (claimed) | 177 hp (132.0 kW) |
| PTO (tested) | 205.72 hp (153.4 kW) |
Transmission
| Description | Four power-shift gears (1-4) in four synchronized ranges (A-D). Push-button clutch for range shifts. / Four power-shift gears (1-4) in Five synchronized ranges (A-E). Push-button clutch and automatic shift mode. / Eight power-shift gears in three electronically-shifted ranges. Automatic and manual shifting modes available. |
|---|---|
| Gears | 20 forward and reverse / 20 forward and reverse / infinite forward and reverse / 24 forward and reverse |
| Transmission | PowerQuad Plus / AutoQuad Plus / AutoPowr / DirectDrive |
| Type | four-speed power shift / four-speed power shift / infinitely-variable transmission (IVT) / eight-speed power shift |
| Description | infinitely-variable transmission (IVT) |
| Transmission type | 20-speed four-speed power shift / 24-speed eight-speed power shift |
| Description | infinitely-variable transmission (IVT) |
| Transmission type | 20-speed four-speed power shift / 24-speed eight-speed power shift |
Mechanical
| Cab | ComfortView Cab with active hydraulic suspension and air-conditioning. AutoTrac ((Optional)) |
|---|---|
| Description | Power steering |
| Differential lock | electro-hydraulic front and rear |
| Drive type | Four-wheel drive |
| Final drives | inboard planetary |
| Trailer brakes | hydraulic OptOptional |
Hydraulics
| Pressure | 2900 psi (200.0 bar) |
|---|---|
| Pump flow | 30.1 gpm (113.9 lpm) |
| Rear valves | 3 to 6 |
| SCV flow | 26.4 gpm (99.9 lpm) |
| Type | closed-center pressure flow compensated |
| Valves | up to 6 |
Hitch
| Front Hitch | IIIN |
|---|---|
| Front lift | 7275 lbs (3299 kg) |
| Rear lift (at 24"/610mm) | 12015 lbs (5450 kg) |
| Rear Type | III |
PTO
| Clutch | electro-hydraulic wet disc / electro-hydraulic wet disc |
|---|---|
| Engine RPM | 1000@1969 |
| Front PTO | independent |
| Front PTO Type | 1000 |
| Rear PTO | independent |
| Rear PTO Type | 540/1000 (1.375) |
Electrical
| Battery volts | 12 |
|---|---|
| Charging amps | 200 |
| Charging system | alternator |
| Charging volts | 14 |
| Ground | negative |
Dimensions & Tires
| Front axle | Triple Link Suspension |
|---|---|
| Height (cab) | 124.4 inches (315 cm) |
| Length | 198.8 inches (504 cm) |
| Max weight | 29652 lbs (13450 kg) |
| Rack-and-pinion rear axle | 3.94 by 100.4 inches (100 by 2550 mm) / 3.94 by 110.5 inches (100 by 2806 mm) / 3.94 by 118.5 inches (100 by 3009 mm) |
| Shipping weight | 18739 lbs (8500 kg) |
| Wheelbase | 110.2 inches (279 cm) |
| Width | 100.4 inches (255 cm) |
| Front tire | 420/90R30 |
| Rear tire | 480/80R46 |
| Weight | 18739 lbs (8500 kg) |
| Wheelbase | 110.2 inches (279 cm) |
| Standard tires (ag) | Front: 420/90R30. Rear: 480/80R46 |
John Deere 6215R attachments
| Description | front-end loader |
|---|
OCED Tractor Test 2106
| Description | Diesel AutoQuad Plus 4WDJune 23 - 30, 2015Link: OCED Tractor Test 2106 file / PTO performance / Drawbar performance |
|---|---|
| Fuel use | 11.3 gal/hour (42.8 l/hour) / 10.5 gal/hour (39.7 l/hour) / 11.3 gal/hour (42.8 l/hour) / 10.5 gal/hour (39.7 l/hour) |
| Max power | 205.72 hp (153.4 kW) / 173.89 hp (129.7 kW) |
| Max pull | 19897 lbs (9025 kg) |
| Power at rated engine speed | 181.06 hp (135.0 kW) |
| Power at rated PTO speed | 203.63 hp (151.8 kW) |
References
| Description | Operator's Manual 6145R, 6155R, 6155RH, 6175R, 6195R and 6125R (OMAL218252) published in 2016 / Operator's Manual 6145R, 6155R, 6155RH, 6175R, 6195R and 6125R (OMAL225966) published in 2021 |
|---|
Speeds
| Description | With SRI 925 rear tires. Rear speeds are 4% faster than forward. / With SRI 925 rear tires. Rear speeds are 4% faster than forward. / With SRI 925 rear tires. Rear speeds are 4% faster than forward. |
|---|
