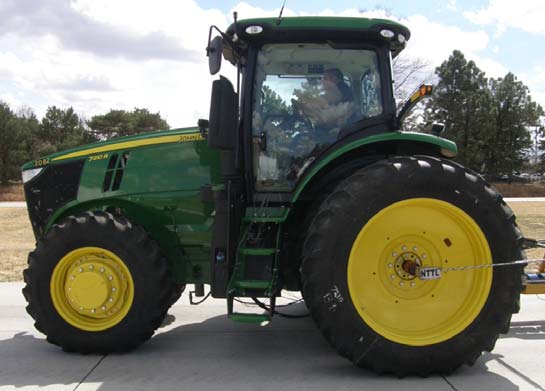

John Deere 7210R Specs ( 2014-Present )
Production
| Description | Row-Crop tractor / Built in Waterloo, Iowa, USA |
|---|---|
| Manufacturer | John Deere |
Engine
| Engine type | John Deere 6.8L 6-cyl diesel |
|---|---|
| Air cleaner | two stage dry |
| Bore/Stroke | 4.19x5.00 inches (106 x 127 mm) |
| Compression | 16:1 |
| Coolant capacity | 41.7 qts (39.5 L) |
| Description | John Deere PowerTech PSX / dual turbochargers diesel / 6-cylinder 24-valve / liquid-cooled inline |
| Displacement | 415 ci (6.8 L) |
| Emission control | cooled exhaust gas recirculation |
| Emissions | Stage IIIB *Stage II version available in select markets |
| Fuel system | electronic high-pressure common rail |
| Maximum Power (gross) | 249 hp (185.7 kW) |
| Maximum Power (net) | 238.7 hp (178.0 kW) |
| Operating RPM | 1550-2100 |
| Rated Power (gross) | 210 hp (156.6 kW) |
| Rated Power (net) | 202 hp (150.6 kW) |
| Rated RPM | 2100 |
| Starter | electric |
| Starter volts | 12 |
| Torque | 725 lb-ft (983.1 Nm) |
| Torque RPM | 1600 |
| Oil capacity | 25.9 qts (24.5 L) |
| Oil change | 500 h |
| Drawbar (tested) | 170.77 hp (127.3 kW) |
| Engine (gross) | 210 hp (156.6 kW) |
| Engine (max) | 249 hp (185.7 kW) |
| Engine (net) | 202 hp (150.6 kW) |
| PTO (claimed) | 170 hp (126.8 kW) |
| PTO (tested) | 206.11 hp (153.7 kW) |
Transmission
| Clutch | hydraulic wet disc / hydraulic wet disc |
|---|---|
| Description | Four power shift gears (1-4) in five synchronized ranges (A-E) with left-hand reverser. |
| Gears | 20 forward and reverse / 23 forward and 11 reverse / infinite forward and reverse |
| Oil capacity | 169.1 qts (160.0 L) / 169.1 qts (160.0 L) / 169.1 qts (160.0 L) |
| Transmission | John Deere CommandQuad Eco / John Deere e23 / John Deere AutoPowr IVT |
| Type | partial power shift / full power shift / infinitely variable transmission |
| Description | infinitely variable transmission |
| Transmission type | 20-speed partial power shift / 23-speed full power shift |
| Description | infinitely variable transmission |
| Transmission type | 20-speed partial power shift / 23-speed full power shift |
Mechanical
| Cab | Cab standard with air-conditioning. AutoTrac ready |
|---|---|
| Description | Hydraulic wet disc brakes |
| Differential lock | electro-hydraulic rear |
| Drive type | Four-wheel drive |
| Final drives | inboard planetary |
| Steering | hydrostatic power |
| Trailer brakes | hydraulic (optional) |
Capacity
| CommandQuad Fuel | 151.1 gal (571.9 L) |
|---|---|
| E23 Fuel | 143.7 gal (543.9 L) |
| Exhaust fluid (DEF) | 6.8 gal (25.7 L) |
| Fuel | 133 gal (CQ) (503.4 L) |
| Hydraulic system | 42.3 gal (160.1 L) |
| IVT Fuel | 155.6 gal (588.9 L) |
Hydraulics
| Capacity | 42.3 gal (160.1 L) |
|---|---|
| Front SCV flow | 33.3 gpm (126.0 lpm) |
| Front valves | 0 to 2 |
| Mid valves | 0 to 3 |
| Pressure | 2958 psi (204.0 bar) |
| Pump flow | 31.9 gpm*Standard 45cc pump (120.7 lpm) |
| Rear SCV flow | 34.9 gpm (132.1 lpm) |
| Rear valves | 3 to 6 |
| Type | closed center pressure-flow compensated |
| Valves | 3 to 6 |
Hitch
| Control | electro-hydraulic draft sensing |
|---|---|
| Drawbar | Cat. 3 adjustable swinging drawbar. Optional heavy-duty support. |
| Front Hitch | IIIN |
| Front lift | 11464 lbs (5200 kg) |
| Front lift (at ends) | 11464 lbs (5200 kg) |
| Rear Arms | hydraulic center link (optional) |
| Rear lift | 12000 lbs (5443 kg) |
| Rear Type | III/IIIN |
PTO
| Engine RPM | 540@1950 / 1000@1940 |
|---|---|
| Front PTO | independent OptOptional |
| Front PTO Type | 1000 (1.375) |
| Rear PTO | independent |
| Rear PTO Type | 1000 (1.75) |
Electrical
| Batteries | 2 |
|---|---|
| Battery CCA | 925 |
| Battery Group | 31 |
| Battery volts | 12 |
| Charging amps | 200 |
| Charging system | alternator |
| Ground | negative |
Dimensions & Tires
| Bar rear axle | 3.94 by 100.4 inches (100 by 2550 mm) / 3.94 by 110.5 inches (100 by 2806 mm) / 3.94 by 118.5 inches (100 by 3009 mm) |
|---|---|
| Clearance (drawbar) | 14 inches (G47 tires) (35 cm) |
| Clearance (front axle) | 19.5 inches (49 cm) |
| Clearance (rear axle) | 23 inches (G47 tires) (58 cm) |
| Description | Flange rear axle |
| Front axle | 1150 MFWD / Triple-Link Suspension MFWD |
| Front tread | 60 to 88 inches (152 to 223 cm) |
| Height (cab) | 132 inches (335 cm) |
| Length | 217 inches (551 cm) |
| Rear axle | 3.94 by 100.4 inches (100 by 2550 mm) / 3.94 by 110.5 inches (100 by 2806 mm) / 3.94 by 118.5 inches (100 by 3009 mm) |
| Rear tread | 77.5 to 100 inches (196 to 254 cm) / 86.9 to 109.4 inches (220 to 277 cm) / 95 to 117.4 inches (241 to 298 cm) |
| Weight | 22983 lbs (10425 kg) |
| Wheelbase | 115.2 inches (292 cm) |
| Front tire | 540/65R34 |
| Rear tire | 650/85R38 |
| Weight | 22983 lbs (10425 kg) |
| Wheelbase | 115.2 inches (292 cm) |
| Ag front | 540/65R34 / 320/85R38 |
| Ag rear | 650/85R38 / 320/90R54 |
| Standard tires (ag) | Front: 380/80R38. Rear: 480/80R50 |
7210R Serial Numbers
| Location: | Serial number plate on right side of tractor frame, above front axle. |
|---|
John Deere 7210R attachments
| Description | front-end loader |
|---|
OCED Tractor Test 2082
| Description | Diesel CommandQuad 4WDApril 2 - 14, 2014Link: OCED Tractor Test 2082 file / PTO performance / Drawbar performance |
|---|---|
| Fuel use | 11.3 gal/hour (42.8 l/hour) / 10.3 gal/hour (39.0 l/hour) / 11.2 gal/hour (42.4 l/hour) / 10.3 gal/hour (39.0 l/hour) |
| Max power | 206.11 hp (153.7 kW) / 166.67 hp (124.3 kW) |
| Max pull | 21760 lbs (9870 kg) |
| Power at rated engine speed | 177.75 hp (132.5 kW) |
| Power at rated PTO speed | 199.85 hp (149.0 kW) |
OCED Tractor Test 2179
| Description | Diesel e23 4WDSeptember 5 - 8, 2017Link: OCED Tractor Test 2179 file / PTO performance / Drawbar performance / Gear 10 used for power test. / Gear 5 used for pull test. |
|---|---|
| Fuel use | 11.0 gal/hour (41.6 l/hour) / 10.4 gal/hour (39.4 l/hour) / 11.0 gal/hour (41.6 l/hour) / 10.3 gal/hour (39.0 l/hour) |
| Max power | 205.32 hp (153.1 kW) / 170.77 hp (127.3 kW) |
| Max pull | 21510 lbs (9756 kg) |
| Power at rated engine speed | 182.22 hp (135.9 kW) |
| Power at rated PTO speed | 199.07 hp (148.4 kW) |
Speeds
| Description | With Group 48 rear tires. 50kph transmission shown. Reverse speeds are about 5% faster than forward. Reverse capped at 30 kph (D4). / With Group 48 rear tires. Top speed is achieved at reduced engine rpm. F23 at 1855rpm and R11 at 1820rpm. |
|---|
Tractor Tests
| Description | OECD 2082: diesel CommandQuad 4WD / OECD 2179: diesel e23 4WD |
|---|
