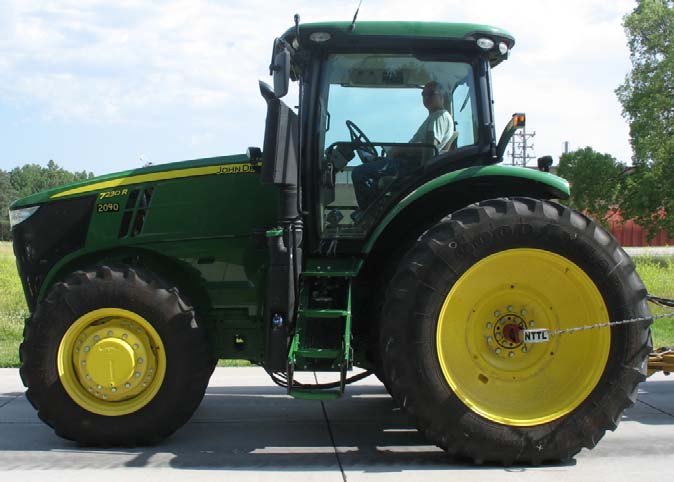

John Deere 7230R Specs ( 2014-Present )
Production
| Description | Row-Crop tractor / Built in Waterloo, Iowa, USA |
|---|---|
| Manufacturer | John Deere |
Engine
| Engine type | John Deere 6.8L 6-cyl diesel |
|---|---|
| Fuel tank | 133 gal (PowrQuad) (503.4 L) |
| Air cleaner | dual stage dry |
| Bore/Stroke | 4.19x5.00 inches (106 x 127 mm) |
| Compression | 16:1 |
| Coolant capacity | 41.7 qts (39.5 L) |
| Description | John Deere PowerTech PSX / dual turbochargers diesel / 6-cylinder 24-valve / liquid-cooled inline |
| Displacement | 415 ci (6.8 L) |
| Emission control | cooled exhaust gas recirculation |
| Emissions | Stage IIIB *Stage II version available in select markets |
| Fuel system | electronic high-pressure common rail |
| Maximum Power (gross) | 269 hp (200.6 kW) |
| Maximum Power (net) | 258.6 hp (192.8 kW) |
| Operating RPM | 1550-2100 |
| Rated Power (gross) | 230 hp (171.5 kW) |
| Rated Power (net) | 221 hp (164.8 kW) |
| Rated RPM | 2100 |
| Starter | electric |
| Starter volts | 12 |
| Torque | 794 lb-ft (1076.7 Nm) |
| Torque RPM | 1600 |
| Oil capacity | 25.9 qts (24.5 L) |
| Oil change | 500 h |
| Drawbar (tested) | 179.34 hp (133.7 kW) |
| Engine (gross) | 230 hp (171.5 kW) |
| Engine (max) | 269 hp (200.6 kW) |
| Engine (net) | 221 hp (164.8 kW) |
| PTO (claimed) | 189 hp (140.9 kW) |
| PTO (tested) | 225.07 hp (167.8 kW) |
Transmission
| Description | Four power shift gears (1-4) in five synchronized ranges (A-E) with left-hand reverser. |
|---|---|
| Gears | 20 forward and reverse / 23 forward and 11 reverse / infinite forward and reverse |
| Oil capacity | 169.1 qts (160.0 L) / 169.1 qts (160.0 L) / 169.1 qts (160.0 L) |
| Transmission | John Deere CommandQuad Eco / John Deere e23 / John Deere AutoPowr IVT |
| Type | partial power shift / full power shift / infinitely variable transmission |
| Description | infinitely variable transmission |
| Transmission type | 20-speed partial power shift / 23-speed full power shift |
| Description | infinitely variable transmission |
| Transmission type | 20-speed partial power shift / 23-speed full power shift |
Mechanical
| Cab | Cab standard with air-conditioning. AutoTrac ready |
|---|---|
| Description | Hydraulic wet disc brakes |
| Differential lock | electro-hydraulic rear |
| Drive type | Four-wheel drive |
| Final drives | inboard planetary |
| Steering | hydrostatic power |
Capacity
| CommandQuad Fuel | 151.1 gal (571.9 L) |
|---|---|
| E23 Fuel | 143.7 gal (543.9 L) |
| Hydraulic system | 42.3 gal (160.1 L) |
| IVT Fuel | 155.6 gal (588.9 L) |
Hydraulics
| Capacity | 42.3 gal (160.1 L) |
|---|---|
| Front SCV flow | 33.3 gpm (126.0 lpm) |
| Mid valves | 0 to 2 |
| Pressure | 2958 psi (204.0 bar) |
| Pump flow | 31.9 gpm*Standard 45cc pump (120.7 lpm) |
| Rear SCV flow | 34.9 gpm (132.1 lpm) |
| Rear valves | 6 (max) |
| SCV flow | 35 gpm (132.5 lpm) |
| Type | closed center pressure-flow compensated |
| Valves | 3 to 6 |
Hitch
| Control | electro-hydraulic draft sensing |
|---|---|
| Drawbar | Category 3 drawbar standard with 4,050 to 6,000 pound rating. High-capacity 10,000 Cat. 3 drawbar optional. |
| Front Hitch | IIIN |
| Front lift | 11464 lbs (5200 kg) |
| Rear lift | 12000 lbs (5443 kg) |
| Rear Type | III/IIIN |
PTO
| Engine RPM | 540@1950 / 1000@1940 |
|---|---|
| Front PTO | independent OptOptional |
| Front PTO Type | 1000 (1.375) |
| Rear PTO | independent |
| Rear PTO Type | 1000 (1.75) |
Electrical
| Batteries | 2 |
|---|---|
| Battery CCA | 925 |
| Battery Group | 31 |
| Battery volts | 12 |
| Charging amps | 200 |
| Charging system | alternator |
| Ground | negative |
Dimensions & Tires
| Bar rear axle | 3.94 by 100.4 inches (100 by 2550 mm) / 3.94 by 110.5 inches (100 by 2806 mm) / 3.94 by 118.5 inches (100 by 3009 mm) |
|---|---|
| Clearance (front axle) | 19.5 inches (49 cm) |
| Description | Flange rear axle |
| Front axle | 1150 MFWD / Triple-Link Suspension MFWD |
| Front tread | 60 to 88 inches (152 to 223 cm) |
| Height (cab) | 132 inches (335 cm) |
| Length | 217 inches (551 cm) |
| Rear axle | 3.94 by 100.4 inches (100 by 2550 mm) / 3.94 by 110.5 inches (100 by 2806 mm) |
| Standard axle rear axle | 3.94 by 118.5 inches (100 by 3009 mm) |
| Weight | 22893 lbs (10384 kg) |
| Wheelbase | 115.2 inches (292 cm) |
| Front tire | 540/65R34 |
| Rear tire | 650/85R38 |
| Weight | 22893 lbs (10384 kg) |
| Wheelbase | 115.2 inches (292 cm) |
| Ag front | 540/65R34 / 320/85R38 |
| Ag rear | 650/85R38 / 320/90R54 |
7230R Serial Number Location
| Description | Front-right of main tractor frame, above front axle. |
|---|
7230R Serial Numbers
| Location: | Serial number plate on right side of tractor frame, above front axle. |
|---|
John Deere 7230R Weight
| Max capacity | 31,967 lbs (14500 kg) |
|---|---|
| Max front axle | 14,330 lbs (6500 kg) |
| Max rear axle | 23,149 lbs (10500 kg) |
| TLS Plus | 26,585 lbs (12058 kg) |
John Deere 7230R attachments
| Description | front-end loader |
|---|
OCED Tractor Test 2022
| Description | Diesel CommandQuad 4WDMay 1 - 15, 2012Link: OCED Tractor Test 2022 file / PTO performance / Drawbar performance |
|---|---|
| Fuel use | 12.0 gal/hour (45.4 l/hour) / 11.2 gal/hour (42.4 l/hour) / 12.0 gal/hour (45.4 l/hour) / 11.4 gal/hour (43.1 l/hour) |
| Max power | 225.07 hp (167.8 kW) / 179.34 hp (133.7 kW) |
| Max pull | 21678 lbs (9833 kg) |
| Power at rated engine speed | 193.37 hp (144.2 kW) |
| Power at rated PTO speed | 216.63 hp (161.5 kW) |
Speeds
| Description | With Group 48 rear tires. 50kph transmission shown. Reverse speeds are about 5% faster than forward. Reverse capped at 30 kph (D4). / With Group 48 rear tires. Top speed is achieved at reduced engine rpm. F23 at 1855rpm and R11 at 1820rpm. |
|---|
