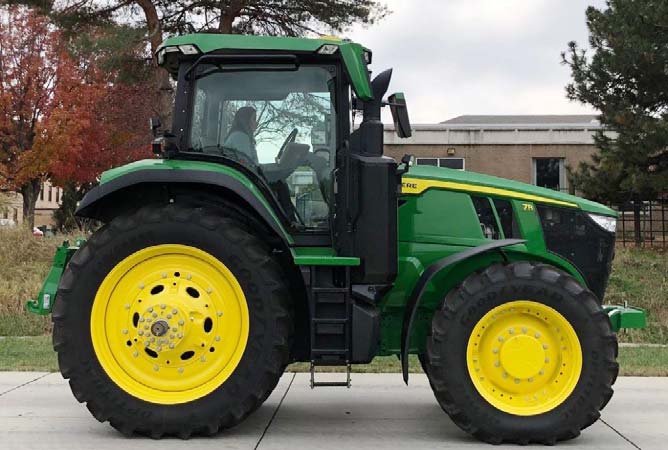

John Deere 7R 250 Specs ( 2019-Present )
Production
| Description | Row-Crop tractor / Built in Waterloo, Iowa, USA / Original price was $278,374 in 2020 |
|---|---|
| Manufacturer | John Deere |
Engine
| Engine type | John Deere 6.8L 6-cyl diesel |
|---|---|
| Bore/Stroke | 4.19x5.00 inches (106 x 127 mm) |
| Compression | 16.7:1 |
| Description | John Deere / turbocharged diesel / 6-cylinder / liquid-cooled |
| Displacement | 415 ci (6.8 L) |
| Emissions | Tier IV |
| Fuel system | electronic high-pressure common rail |
| Maximum Power (gross) | 275 hp (205.1 kW) |
| Rated Power (gross) | 250 hp (186.4 kW) |
| Starter | electric |
| Starter volts | 12 |
| Drawbar (tested) | 191.17 hp (142.6 kW) |
| Engine (gross) | 250 hp (186.4 kW) |
| Engine (max) | 275 hp (205.1 kW) |
| PTO (claimed) | 205 hp (152.9 kW) |
| PTO (tested) | 241.94 hp (180.4 kW) |
Transmission
| Gears | 23 forward and 11 reverse / infinite forward and reverse |
|---|---|
| Transmission | e23 |
| Type | full power shift / infinitely variable transmission |
| Description | infinitely variable transmission |
| Transmission type | 23-speed full power shift |
| Description | infinitely variable transmission |
| Transmission type | 23-speed full power shift |
Mechanical
| Cab | Cab standard with air-conditioning. |
|---|---|
| Description | Power steering |
| Differential lock | electro-hydraulic rear |
| Drive type | Four-wheel drive |
| Final drives | inboard planetary |
Capacity
| Exhaust fluid (DEF) | 6.9 gal (26.1 L) |
|---|---|
| Fuel | 122 gal (e23) (461.8 L) |
| Hydraulic system | 17.2 gal (65.1 L) |
Hydraulics
| Capacity | 17.2 gal (65.1 L) |
|---|---|
| Front valves | 0 to 1 |
| Pressure | 2958 psi (204.0 bar) |
| Pump flow | 43 gpm (162.8 lpm) |
| Rear valves | 4 to 6 |
| SCV flow | 35 gpm (rear) (132.5 lpm) |
| Type | closed-center pressure flow compensated |
Hitch
| Control | electro-hydraulic draft sensing |
|---|---|
| Front Hitch | IIIN |
| Front lift (at 24"/610mm) | 6994 lbs (3172 kg) |
| Front lift (at ends) | 7690 lbs (3488 kg) |
| Rear lift (at 24"/610mm) | 15200 lbs (6894 kg) |
| Rear Type | III/IIIN |
PTO
| Clutch | 1000:1940 |
|---|---|
| Engine RPM | 540@1950 |
| Front PTO | independent OptOptional |
| Front PTO Type | 1000 (1.375) |
| Rear PTO | independent |
| Rear PTO Type | 1000 (1.75) |
Electrical
| Batteries | 2 |
|---|---|
| Battery CCA | 925 |
| Battery Group | 31 |
| Battery volts | 12 |
| Charging amps | 210 |
| Charging system | alternator |
| Ground | negative |
Dimensions & Tires
| Clearance (front axle) | 19.5 inches (49 cm) |
|---|---|
| Front tread | 60 to 88 inches (152 to 223 cm) |
| Length | 218 inches (553 cm) |
| Rack-and-pinion rear axle | 4.33 by 118.5 inches (109 by 3009 mm) / 4.33 by 100.4 inches (109 by 2550 mm) / 4.33 by 110.5 inches (109 by 2806 mm) / 4.72 by 100.4 inches (119 by 2550 mm) / 4.72 by 118.5 inches (119 by 3009 mm) |
| Wheelbase | 115.2 inches (292 cm) |
| Front tire | 420/85R34 |
| Rear tire | 480/80R50 |
| Wheelbase | 115.2 inches (292 cm) |
| Standard tires (ag) | Front: 420/85R34. Rear: 480/80R50 |
John Deere 7R 250 attachments
| Description | front-end loader |
|---|
OCED Tractor Test 2085A
| Description | Diesel e23 4WDApril 24 - 30, 2014Link: OCED Tractor Test 2085A file / PTO performance / Drawbar performance / Gear 9 used for power test. / Gear 14.29 used for pull test. |
|---|---|
| Fuel use | 13.3 gal/hour (50.3 l/hour) / 12.2 gal/hour (46.2 l/hour) / 13.2 gal/hour (50.0 l/hour) / 12.1 gal/hour (45.8 l/hour) |
| Max power | 241.94 hp (180.4 kW) / 191.17 hp (142.6 kW) |
| Max pull | 22564 lbs (10235 kg) |
| Power at rated engine speed | 214.51 hp (160.0 kW) |
| Power at rated PTO speed | 236.31 hp (176.2 kW) |
References
| Description | 7R Tractors published in 2019, by John Deere |
|---|
