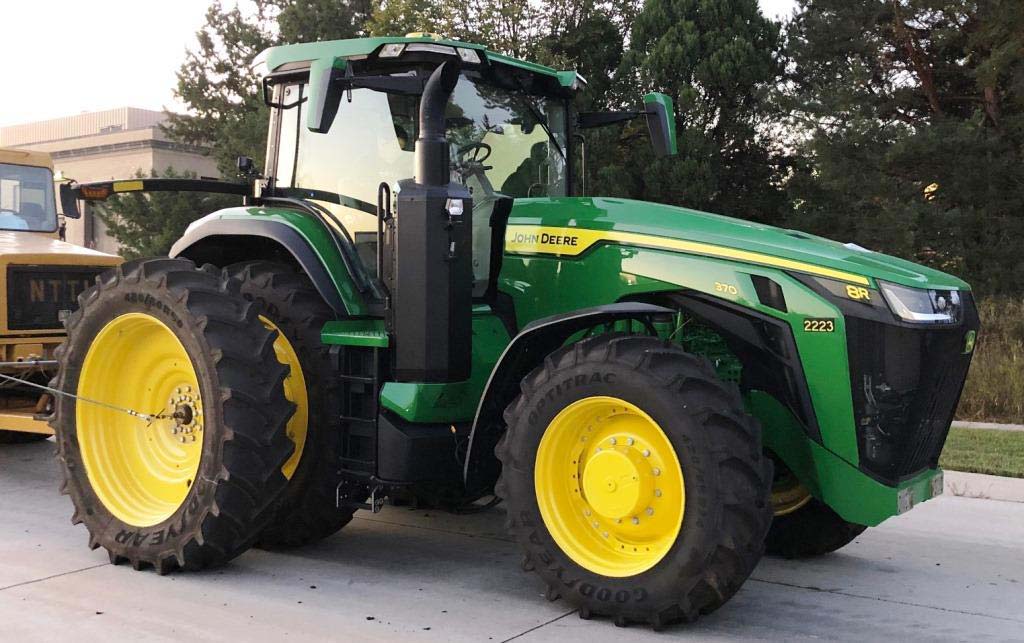

John Deere 8R 370 Specs ( 2019-Present )
Production
| Description | Row-Crop tractor / Built in Waterloo, Iowa, USA / Original price was $432,652 in 2020 |
|---|---|
| Manufacturer | John Deere |
Engine
| Engine type | John Deere 9.0L 6-cyl diesel |
|---|---|
| Exhaust fluid (DEF) | 9.8 gal (37.1 L) |
| Fuel tank | 192 gal (726.7 L) |
| Bore/Stroke | 4.66x5.35 inches (118 x 136 mm) |
| Compression | 16.0:1 |
| Description | John Deere / turbocharged diesel / 6-cylinder / liquid-cooled |
| Displacement | 549 ci (9.0 L) |
| Emissions | Tier IV |
| Fuel system | electronic high-pressure common rail |
| Maximum Power (gross) | 407 hp (303.5 kW) |
| Rated Power (gross) | 370 hp (275.9 kW) |
| Rated RPM | 2100 |
| Starter | electric |
| Starter volts | 12 |
| Drawbar (tested) | 284.85 hp (212.4 kW) |
| Engine (gross) | 370 hp (275.9 kW) |
| Engine (max) | 407 hp (303.5 kW) |
| PTO (claimed) | 310 hp (231.2 kW) |
| PTO (tested) | 371.22 hp (276.8 kW) |
Transmission
| Gears | 23 forward and 11 reverse / infinite forward and reverse |
|---|---|
| Transmission | e23 |
| Type | full power shift / infinitely variable transmission |
| Description | infinitely variable transmission |
| Transmission type | 23-speed full power shift |
| Description | infinitely variable transmission |
| Transmission type | 23-speed full power shift |
Mechanical
| Cab | Cab standard with air-conditioning. |
|---|---|
| Description | Power steering |
| Drive type | Four-wheel drive |
| Final drives | inboard planetary |
Hydraulics
| Pressure | 2958 psi (204.0 bar) |
|---|---|
| Pump flow | 60 gpm (227.1 lpm) |
| Rear valves | 4 to 6 |
| SCV flow | 35 gpm (rear) (132.5 lpm) |
| Type | closed-center pressure flow compensated |
Hitch
| Control | electro-hydraulic draft sensing |
|---|---|
| Front Hitch | IIIN |
| Front lift (at ends) | 11464 lbs (5200 kg) |
| Rear lift (at 24"/610mm) | 20000 lbs (9072 kg) |
| Rear Type | IVN/III |
PTO
| Clutch | electro-hydraulic wet disc / electro-hydraulic wet disc |
|---|---|
| Engine RPM | 1000@2003 / 1000@2000 |
| Front PTO | independent OptOptional |
| Front PTO Type | 1000 (1.375) |
| Rear PTO | independent |
| Rear PTO Type | 1000 (1.75) |
Electrical
| Batteries | 2 |
|---|---|
| Battery CCA | 925 |
| Battery Group | 31 |
| Battery volts | 12 |
| Charging amps | 250 |
| Charging system | alternator |
| Ground | negative |
Dimensions & Tires
| Clearance (rear axle) | 31.5 inches (80 cm) |
|---|---|
| Front tread | 60 to 144 inches (152 to 365 cm) |
| Height (cab) | 137.8 inches*Height with Group 49 tires, exclusive antennas and beacons. (350 cm) |
| Length | 252.8 inches (642 cm) |
| Operating weight | 29000 lbs*IVT tractor with 480/80R50 duals. (13154 kg) |
| Rear axle | 4.72 by 100.4 inches (119 by 2550 mm) / 4.72 by 118.5 inches (119 by 3009 mm) |
| Weight | 27800 lbs*Weight with IVT and ILS (12610 kg) |
| Wheelbase | 120.1 inches (305 cm) |
| Front tire | 420/85R34 |
| Rear tire | 480/80R50 |
| Weight | 27800 to 29000 pounds |
| Wheelbase | 120.1 inches (305 cm) |
| Standard tires (ag) | Front: 420/85R34. Rear: 480/80R50 |
OCED Tractor Test 2223
| Description | Diesel IVT 4WDOctober 1 - 13, 2020Link: OCED Tractor Test 2223 file / PTO performance / Drawbar performance / Pull at 10 KPH / Pull at 6 KPH |
|---|---|
| Fuel use | 18.7 gal/hour (70.8 l/hour) / 17.1 gal/hour (64.7 l/hour) / 18.3 gal/hour (69.3 l/hour) / 17.1 gal/hour (64.7 l/hour) |
| Max power | 371.22 hp (276.8 kW) / 284.85 hp (212.4 kW) |
| Max pull | 28178 lbs (12781 kg) |
| Power at rated engine speed | 325.05 hp (242.4 kW) |
| Power at rated PTO speed | 354.41 hp (264.3 kW) |
References
| Description | Operator's Manual 8R Tractors (OMRE593195) published in 2021 |
|---|
Speeds
| Description | With Group 48 tires. |
|---|
Variants
| 8R 370 | wheeled |
|---|---|
| 8RT 370 | two-track |
| 8RX 370 | four-track |
