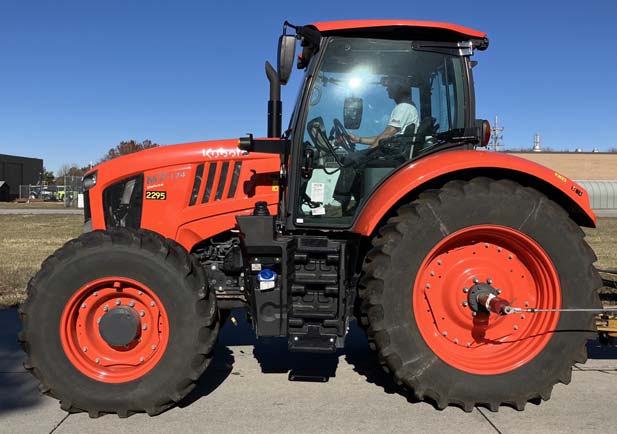

Kubota M7-174 Specs ( 2023-Present )

Production

Description	Row-Crop tractor
Manufacturer	Kubota

Engine

Engine type	Kubota 6.1L 4-cyl diesel
Exhaust fluid (DEF)	10 gal (37.9 L)
Fuel tank	87 gal (329.3 L)
Bore/Stroke	4.65x5.51 inches (118 x 140 mm)
Description	Kubota V6108 / turbocharged intercooled diesel / 4-cylinder / liquid-cooled inline
Displacement	374 ci (6.1 L)
Emissions	Tier IV
Fuel system	direct injection
Maximum Power (gross)	168 hp (125.3 kW)
Rated RPM	2100
Starter	electric
Starter volts	12
Engine (max)	168 hp (125.3 kW)
PTO (claimed)	140 hp (104.4 kW)

Transmission

Clutch	hydraulic wet disc / hydraulic wet disc
Description	Six power shift gears in five synchronized ranges with power shuttle. / Optional additional creeper range transmission for the power shift.
Gears	30 forward and 15 reverse / infinite forward and reverse / 54 forward and 27 reverse
Transmission	KVT
Type	six-speed power shift / continuously-variable transmission / creeper
Description	continuously-variable transmission
Transmission type	30-speed six-speed power shift / 54-speed creeper
Description	continuously-variable transmission
Transmission type	30-speed six-speed power shift / 54-speed creeper

Mechanical

Cab	Cab standard with air-conditioning. Available mechanical or pneumatic cab suspension.
Description	Power steering / Hydraulic wet disc brakes
Drive type	Four-wheel drive

Hydraulics

Pump flow	29 gpm (109.8 lpm)
Rear valves	4 or 5
Type	closed center load-sensing

Hitch

Control	electronic lower-link draft sensing
Rear lift (at 24"/610mm)	11797 lbs (5351 kg)
Rear lift (at ends)	20723 lbs (9399 kg)
Rear Type	III/IIIN

PTO

Front PTO Type	1000
Rear PTO	independent
Rear PTO Type	540/1000

Electrical

Battery AH	174
Battery CCA	1400
Battery volts	12
Charging amps	200
Charging system	alternator
Ground	negative

Dimensions & Tires

Front axle	flange inch diameter (0 mm) / Bar: 110 inch length (2794 mm)
Height	121.7 inches (309 cm)
Length	118 inches (299 cm)
Shipping weight	14546 lbs (6598 kg)
Wheelbase	107 inches (271 cm)
Width	110 inches (279 cm)
Front tire	14.9R28
Rear tire	18.4R38
Weight	14546 lbs (6598 kg)
Wheelbase	107 inches (271 cm)
Standard tires (ag)	Front: 14.9R28. Rear: 18.4R38

Kubota M7-174 attachments

Description	front-end loader

References

Description	M7-4 Series published in 2022, by Kubota

Nebraska Tractor Test Results

Test #2295

Test Date: November 19 - 22, 2024

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

145.22 hp

@ N/A rpm

Rated Engine Speed

137.32 hp

N/A lb/hp·hr

Standard PTO Speed

141.23 hp

@ N/A rpm PTO

Torque Statistics

Maximum Torque	446 lb.-ft. (605 Nm) at 1500 rpm
Torque Rise	29.9%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	DEF gal/hr
Maximum Power (1 Hour)	145.22	108.29	1900	0.48

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
137.32	2100	8.61	0.44	15.95	0.26
118.62	2136	7.38	0.43	16.07	0.27
89.90	2158	6.36	0.49	14.14	0.18
60.59	2183	5.15	0.59	11.77	0.13
30.72	2204	3.88	0.88	7.92	0.15
0.84	2227	2.64	21.76	0.32	0.09

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	kW	Pull (lbs)	Pull (kN)	Speed	km/h	RPM	Slip	DEF lb/hp	Air °F	Air °C	inHg	kPa
Power at Rated Engine Speed — 10th (C1) ...	130.10	97.02	9,875	44	4.94	7.95	2100	4.90	0.02	42	6	28.96	98.07
75% of Pull at Rated Engine Speed — 10th...	101.20	75.46	7,401	33	5.13	8.26	2148	3.60	0.02	43	6	28.97	98.10
50% of Pull at Rated Engine Speed — 10th...	69.46	51.79	4,966	22	5.25	8.44	2173	2.50	0.02	42	6	28.97	98.10
75% of Pull at Reduced Engine Speed — 14...	101.70	75.83	7,434	33	5.13	8.26	1545	3.60	0.03	42	6	28.96	98.07
50% of Pull at Reduced Engine Speed — 14...	69.26	51.65	4,952	22	5.25	8.44	1562	2.40	0.02	42	6	28.96	98.07

Unballasted Front Drive Engaged 2100 Engine RPM

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	inHg	Crank Shaft RPM	Temp Air F	Temp Cool F
3rd(A3)	95.24	15,055	2.38	13.40	28.95	2144	42	186
4th(A4)	110.79	14,464	2.88	10.30	28.95	2131	42	187
5th(B1)	119.48	14,283	3.14	9.60	28.92	2116	44	190
6th(A5)	122.78	13,409	3.44	7.90	28.91	2100	45	192
7th(B2)	126.74	12,594	3.77	7.10	28.91	2100	45	193
8th(A6)	123.83	11,203	4.15	5.70	28.97	2099	41	192
9th(B3)	129.29	10,686	4.54	5.60	28.97	2100	41	191
10th(C1)	130.10	9,875	4.94	4.90	28.96	2100	42	191
11th(B4)	130.59	9,073	5.40	4.60	28.96	2100	42	193
12th(C2)	130.30	8,324	5.87	4.20	28.96	2100	43	193
13th(B5)	128.18	7,468	6.44	3.80	28.96	2100	43	194
14th(C3)	131.94	7,092	6.98	3.50	28.95	2100	43	195
15th(B6)	126.77	6,233	7.63	3.10	28.97	2100	43	195
16th(C4)	129.40	5,871	8.27	2.90	28.97	2100	43	195

Unballasted Front Drive Engaged 1900 Engine RPM

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	inHg	Crank Shaft RPM	Temp Air F	Temp Cool F
3rd(A3)	95.16	15,046	2.38	13.60	28.95	2144	42	187
4th(A4)	110.94	14,512	2.87	10.50	28.94	2130	42	188
5th(B1)	119.51	14,307	3.14	9.70	28.93	2115	44	189
6th(A5)	123.72	13,920	3.34	8.80	28.91	2057	45	192
7th(B2)	128.43	13,617	3.54	8.50	28.91	1995	45	194
8th(A6)	128.60	13,101	3.68	7.50	28.97	1900	41	193
9th(B3)	134.54	12,469	4.05	6.90	28.96	1900	42	191
10th(C1)	136.49	11,582	4.42	6.10	28.96	1900	42	193
11th(B4)	137.25	10,637	4.84	5.50	28.96	1900	43	194
12th(C2)	136.76	9,733	5.27	5.00	28.96	1900	42	194
13th(B5)	135.74	8,804	5.78	4.40	28.95	1900	43	194
14th(C3)	139.04	8,312	6.27	4.10	28.97	1900	43	193
15th(B6)	134.67	7,356	6.87	3.60	28.97	1900	43	193
16th(C4)	138.32	6,971	7.44	3.30	28.97	1900	43	193
17th(D1)	138.11	6,762	7.66	3.20	28.97	1900	43	193
18th(C5)	134.27	5,689	8.85	2.50	28.97	1900	43	194

Category: 3 Quick Attach: None

Lift Capacity

Max Force 14,372 lbs

Three Outlet Sets Combined

Sustained Pressure	2,819 psi
Flow Rate (min press)	30.30 gpm
Max Power	N/A hp

Single Outlet Set

Sustained Pressure	2,529 psi
Flow Rate (min press)	29.50 gpm
Max Power	N/A hp

Hitch Dimensions (No Load)

Dimension	Inches	mm
a	28.70	730
b	12.90	328
c	19.40	492
d	17.50	445
e	13.00	330
f	9.10	230
g	34.50	875
h	9.80	249
i	16.60	422
j	25.40	645
k	18.70	475
l	46.40	1178
m	25.00	635
n	38.50	978
o	9.10	230
p	52.40	1330
q	38.80	985
r	32.90	835

Engine

Make	Kubota
Type	Diesel, four cylinder vertical with turbocharger, air to air intercooler and D.E.F. exhaust treatment
Displacement	374 cu in (6124 ml)
Bore & Stroke	4.65 x 5.51 in (118.00 x 140.00 mm)
Compression Ratio	17.5 to 1
Rated Engine Speed	2100 rpm
Air Cleaner	two paper elements and aspirator

Chassis

Type	front wheel assist
Steering	hydrostatic
Transmission	selective gear fixed ratio with partial (6) range operator controlled power shift
Wheelbase	107.10 in (2720 mm)
Brakes	wet multiple disc hydraulically operated by two foot pedals that can be locked together
Hydraulic Control	direct engine drive

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Engine Oil	SAE 10W30 API service classification CJ-4

Tires & Tracks

Rear Tires	***, 480/80R42
Front Tires	***, 420/85R28
Height of Drawbar	17.00 in (430 mm)

Static Weight

Rear	9,180 lbs
Front	6,780 lbs
Total	15,960 lbs
