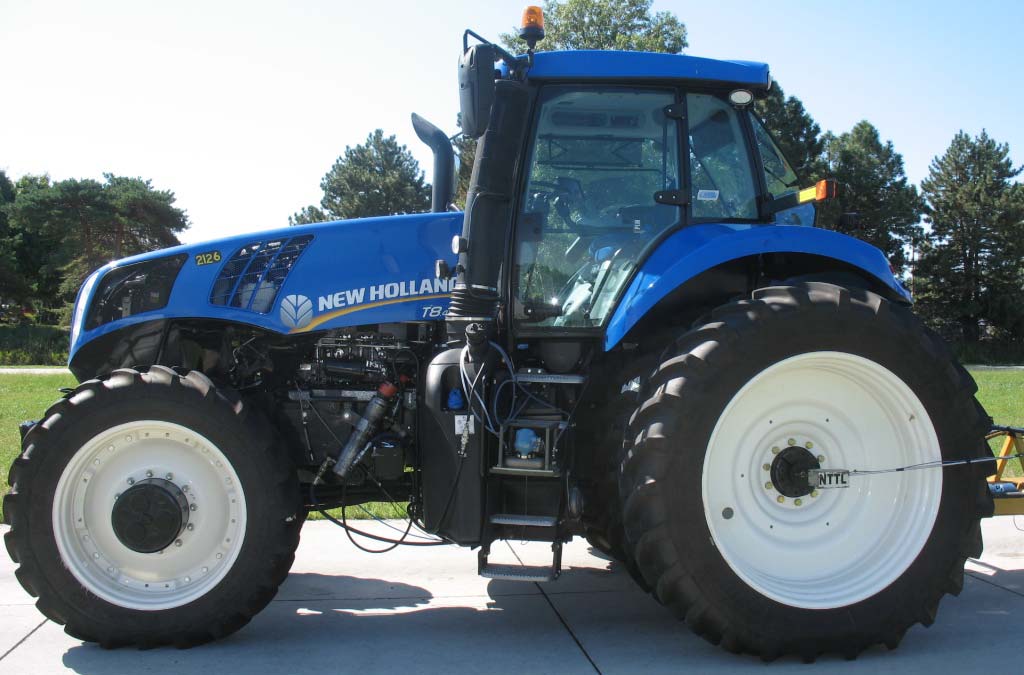

New Holland T8.435 Specs ( 2015-Present )
Production
| Description | Row-Crop tractor / Built in Racine, Wisconsin, USA / Original price was $384,754 in 2016 |
|---|---|
| Manufacturer | New Holland (a part of CNH) |
Engine
| Engine type | FPT 8.7L 6-cyl diesel |
|---|---|
| Exhaust fluid (DEF) | 26 gal (98.4 L) |
| Fuel tank | 163 gal (617.0 L) |
| Bore/Stroke | 4.606x5.315 inches (117 x 135 mm) |
| Cooling system | viscous fan |
| Description | FPT / variable-geometry turbocharged diesel / 6-cylinder 24-valve / liquid-cooled |
| Displacement | 531 ci (8.7 L) |
| Emission control | selective catalytic reduction (SCR) |
| Emissions | Tier IV |
| Fuel system | electronic high-pressure common rail |
| Maximum Power (gross) | 435 hp (324.4 kW) |
| Rated Power (gross) | 380 hp (283.4 kW) |
| Rated RPM | 2000 |
| Starter | electric |
| Starter volts | 12 |
| Drawbar (tested) | 274.79 hp (204.9 kW) |
| Engine (gross) | 380 hp (283.4 kW) |
| Engine (max) | 435 hp (324.4 kW) |
| PTO (claimed) | 315 hp (234.9 kW) |
| PTO (tested) | 372.40 hp (277.7 kW) |
Transmission
| Description | continuously variable transmission (CVT) |
|---|---|
| Gears | infinite forward and reverse (4-range) |
| Transmission | Auto Command |
| Type | continuously variable transmission (CVT) |
Mechanical
| Cab | Cab standard with air-conditioning. Comfort Ride cab suspension optional. Intellisteer ready |
|---|---|
| Description | Power steering / Wet disc brakes |
| Drive type | Four-wheel drive |
| Final drives | inboard planetary |
Hydraulics
| Pump flow | 44 gpm (166.5 lpm) |
|---|---|
| Type | closed center pressure-flow compensating (PFC) |
| Valves | 4 to 5 |
Hitch
| Control | electronic lower-link draft sensing |
|---|---|
| Drawbar | Cat. 4 |
| Rear lift | 19900 lbs (9026 kg) |
| Rear Type | III/IIIN |
PTO
| Engine RPM | 540@1800 |
|---|---|
| Front PTO | independent OptOptional |
| Front PTO Type | 1000 (1.375) |
| Rear PTO | independent |
| Rear PTO Type | 1000 (1.75) |
Electrical
| Batteries | 2 |
|---|---|
| Battery volts | 12 |
| Charging amps | 200 |
| Charging system | alternator |
| Ground | negative |
Dimensions & Tires
| Bar rear axle | 5 by 120 inches (127 by 3048 mm) |
|---|---|
| Front axle | MFWD / Terraglide |
| Front tread | 60 to 88 inches (152 to 223 cm) |
| Height (cab) | 132 inches (335 cm) |
| Length | 272 inches (690 cm) |
| Max weight | 41200 lbs (18688 kg) |
| Weight | 26191 lbs (11880 kg) |
| Wheelbase | 140 inches (355 cm) |
| Front tire | 420/85R34 |
| Rear tire | 480/80R50 |
| Weight | 26191 lbs (11880 kg) |
| Wheelbase | 140 inches (355 cm) |
| Standard tires (ag) | Front: 420/85R34. Rear: 480/80R50 |
New Holland T8.435 attachments
| Description | front-end loader |
|---|
OCED Tractor Test 2126A
| Description | Diesel CVT 4WDMay 19 - June 12, 2015Link: OCED Tractor Test 2126A file / PTO performance / Drawbar performance / Pull at 9.0 KPH / Pull at 5.8 KPH |
|---|---|
| Fuel use | 19.5 gal/hour (73.8 l/hour) / 17.1 gal/hour (64.7 l/hour) / 19.5 gal/hour (73.8 l/hour) / 17.2 gal/hour (65.1 l/hour) |
| Max power | 372.40 hp (277.7 kW) / 274.79 hp (204.9 kW) |
| Max pull | 29017 lbs (13162 kg) |
| Power at rated engine speed | 320.21 hp (238.8 kW) |
| Power at rated PTO speed | 371.45 hp (277.0 kW) |
References
| Description | Genesis T8 Series Tractors published in 2014, by New Holland / Genesis T8 Series Tractors published in 2015, by New Holland |
|---|
T8.435 Serial Numbers
| 2015 | ZERxxxxxx |
|---|---|
| 2016 | ZFRxxxxxx |
| 2017 | ZGRxxxxxx |
| 2018 | ZHRxxxxxx |
| 2019 | ZJRxxxxxx |
| 2020 | ZKRxxxxxx |
| 2021 | ZLRxxxxxx |
| Description | FAQ: How to read a serial number table. |
Variants
| Magnum 380 | similar CaseIH model |
|---|---|
| T8.435 | wheeled tractor |
| T8.435 SmartTrax | half-track |
